Eminence SST1 Constant Directivity Horn (90×40 – 2 Bolt)

July 10, 2020PRO DRIVERS, , ,

Specifications: • Nominal dispersion: 90°H x 40°V • Minimum frequency: 1,000 Hz • Throat diameter: 1″ • Dimensions: 9.8″H x 7.7″W x 5.2″D • Mounting type: Standard 2 bolt • Construction: ABS

On axis Frequency ResponseBlack=Selenium D220Ti  |  Blue=Radian 465PB  |  Red=Eminence PSD2002

Black=Radian 450PB  |  Blue=Pyle PDB512

Eminence S2B-A adapter was used for the following compression drivers

Black=Pyle PDS182  |  Blue=Peavey RX14  |  Red=PRV D280Ti

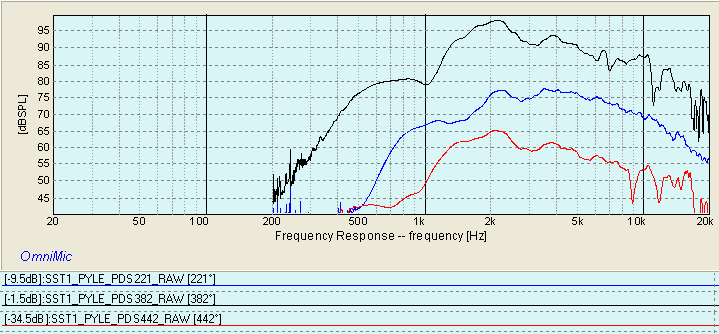

Black=Pyle PDS382  |  Blue=Pyle PDS221  |  Red=Pyle PDS442

Note: All plots are staggered for easier reference. Mic at 36 inches, on axis. Impulse Window=5msec. No smoothing applied.
