Pyle PH810 Horn (90×40 – 1-3/8″ x 18 TPI)

Specifications: • Nominal dispersion: 90°H x 40°V • Minimum frequency: 1,000 Hz • Throat diameter: 1″ • Dimensions: 9.6″H x 7.9″W x 6″D • Mounting type: Standard Screw 1-3/8″ – 18TPI • Construction: ABS

On axis Frequency Response

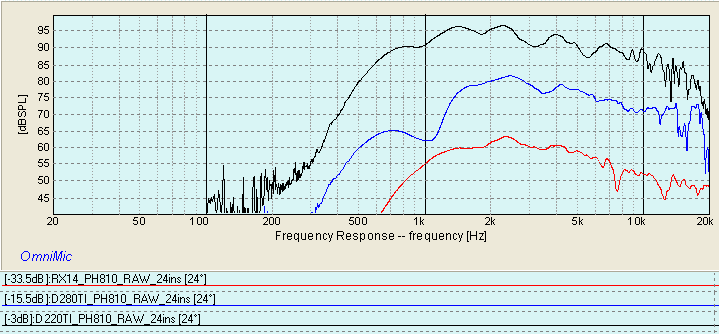

Black=Selenium D220Ti | Blue=PRV D280Ti | Red=Peavey RX14

Black=Pyle PDS182 | Blue=Pyle PDS382 | Red=Pyle PDS221

Selenium ADM25-25 adapter was used for the following compression drivers

Black=B&C DE250 | Blue=Dayton D250P | Red=Peerless DFM2535R00-08

Black=Radian 450PB | Blue=Pyle PDB512

Note: All plots are staggered for easier reference. Mic at 24 inches, on axis. Impulse Window=5msec. No smoothing applied.
