| Specifications: • Nominal dispersion: 80°H x 50°V • Minimum frequency: 2,200 Hz • Throat diameter: 1″ • Dimensions: 5-7/8″H x 5-7/8″W x 3-3/4″D • Mounting type: Standard Screw 1-3/8″ – 18 TPI • Construction: ABS |
|
On axis Frequency Response
Selenium ADM25-25 adapter was used for the following compression drivers
Note: All plots are staggered for easier reference. Mic at 24 inches, on axis. Impulse Window=5msec. No smoothing applied. |
June 14, 2020PRO DRIVERS

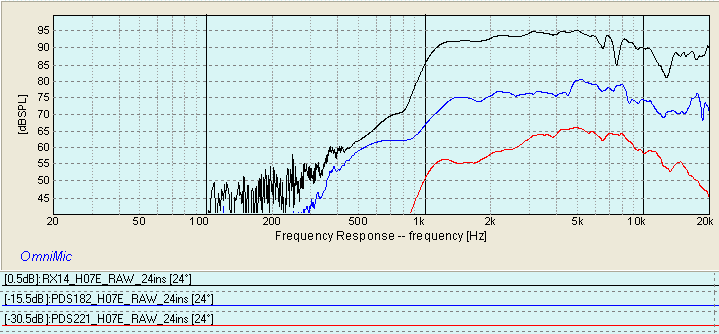

Black=Peavey RX14 | Blue=Pyle PDS182 | Red=

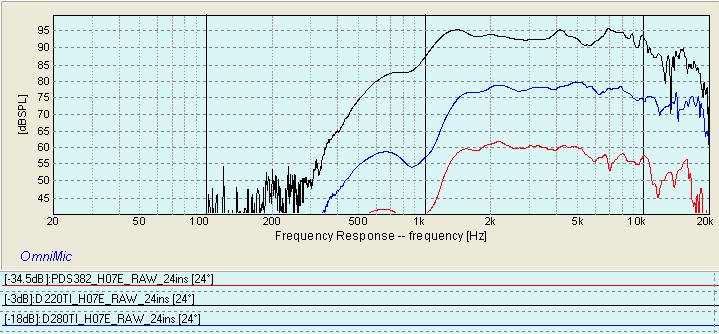

Black=Selenium D220Ti | Blue=
Black=
Black=B&C DE250 | Blue=Dayton D250P | Red=Peerless DFM2535R00-08
Black=Radian 450PB | Blue=Radian 465PB | Red=Pyle PDB512
