SB Acoustics SB19ST-C000-4 3/4″ Soft Dome Tweeter

SB Acoustics SB19ST-C000-4 Impedance

SB Acoustics SB19ST-C000-4 RAW Frequency ResponseFlush Mounted • Baffle Width=8-3/4″

SB19ST-C000-4 CumulativeSpectral Decay (CSD)
3.0kHz HPF • 18dB/oct

Rise Time = 0.10 msec. Window = 1.3 msec ( 769Hz ). Time Range = 1.5 msec

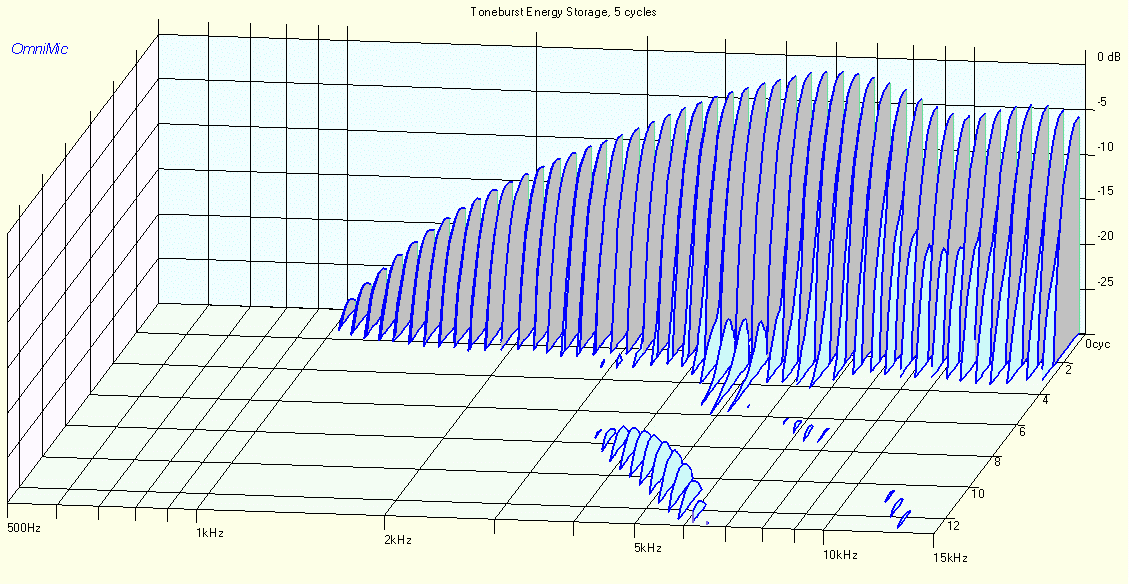

SB19ST-C000-4 Toneburst Energy Storage (TES)
3.0kHz HPF • 18dB/oct

SB19ST-C000-4 Spectrogram
3.0kHz HPF • 18dB/oct

SB19ST-C000-4 Harmonic Distortion
3.0kHz HPF • 18dB/oct

Red plot = 2nd harmonic • Violet plot = 3rd harmonic
