Silver Flute W20RC38-08 8″ Woofer Thiele/Small

Silver Flute W20RC38-08 Frequency Response
Ported Box = 25 liters. Baffle Width = 13.5″
Mic at 36 ins, Woofer axis. Impulse Window=5ms. No Smoothing. Nearfield below 500Hz.

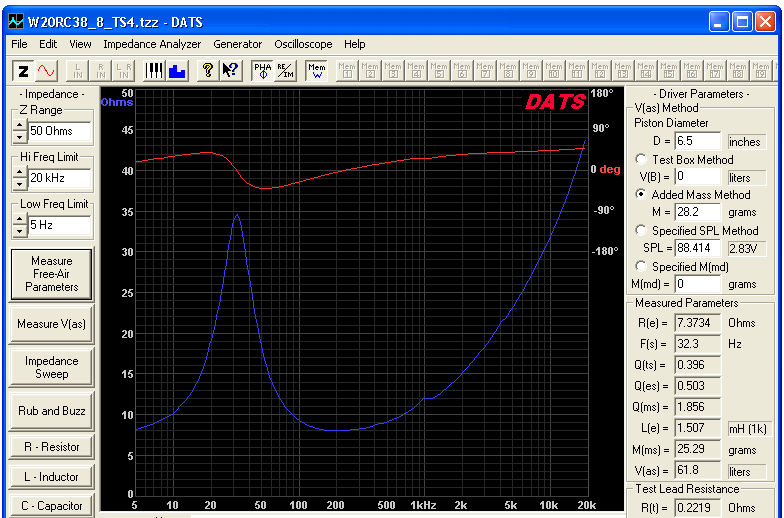

Measured Thiele & Small Parameters

Ported Box 40 liters. F3=37Hz
Ported Box 27 liters. F3=45Hz
Ported Box 35 liters. F3=40Hz
Bandpass Box 33 liters. F3=40Hz~110Hz.

Bandpass Box 50 liters. F3=35Hz~90Hz. Q=0.70

Updated on Aug 10, 2018
