Dayton D250P-8 Compression Driver Horns Compatibility

Dayton D250P-8 Specifications: • 1″ exit Polyimide Diaphragm • Mounting type: 2/3 Bolt M6 • Frequency Response: 1,000Hz-20,000Hz • Sensitivity: 104dB @ 1W/1M • Impedance: 8Ω • Weight: 4.5 lbs • Minimum Recommended Crossover: 1,600Hz @12dB/oct.
Evaluation Setup: Mic at 24 ins, horn axis • Impulse Window=5ms • No Smoothing • Sweep Signal with Bass Removed.

Dayton D250P with FaitalPro STH100 • DiySG SEOS-8 •  SEOS-12DAYTON D250P STH100 SEOS8 SEOS12

Dayton D250P with Dayton H812 • B&C ME10 • Selenium HC23-25
DAYTON D250P H812 ME10 H2325

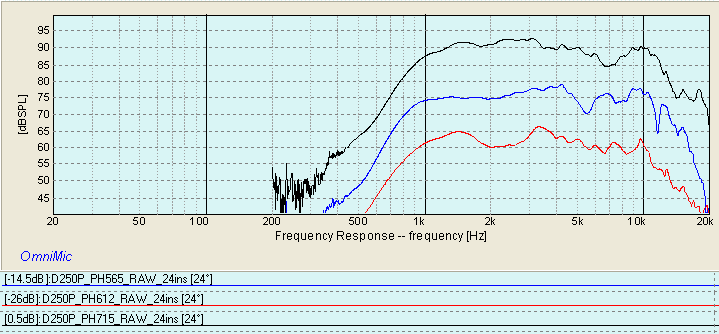

Dayton D250P with Pyle PH715 •  PH565 • PH612

DAYTON D250P PH715 PH565 PH612

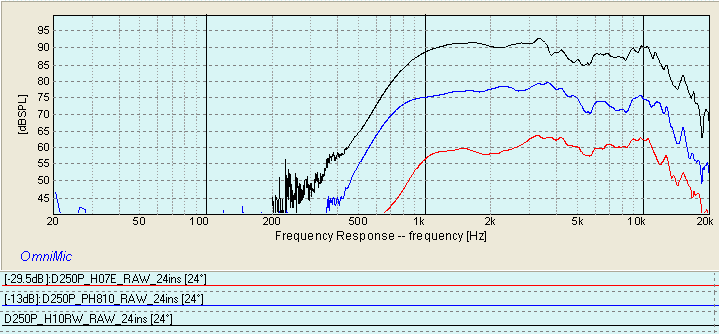

Dayton D250P with Dayton H10RW • H07E • Pyle PH810DAYTON D250P H10RW PH810 H07E
