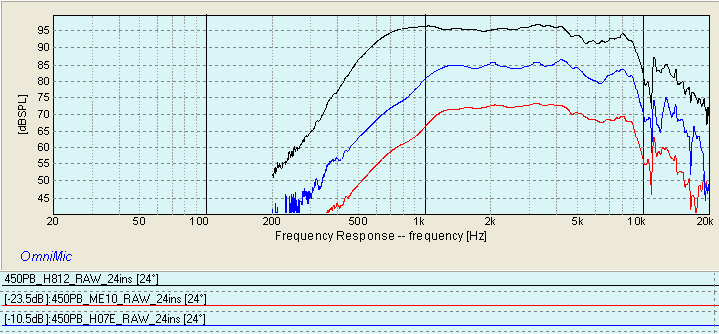

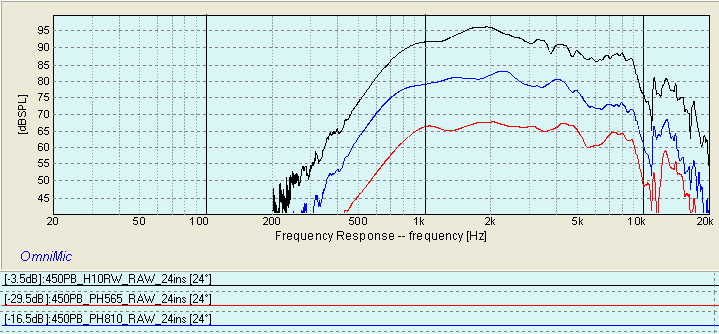

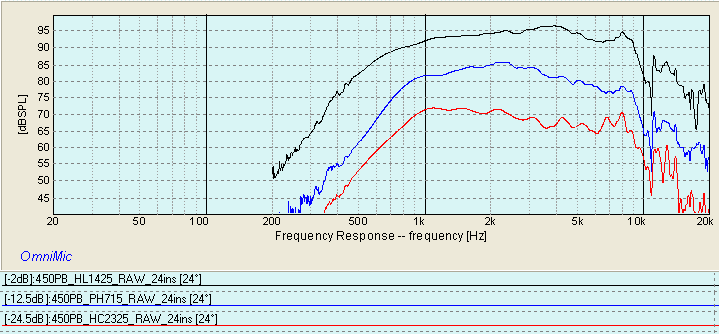

| Radian 450PB-8 Specifications: • 1″ exit Aluminum Diaphragm • Mounting type: 2/3 Bolt 1/4″ x 20 UNF • Frequency Response: 800Hz-20,000Hz • Sensitivity: 110dB @ 1W/1M • Impedance: 8Ω • Weight: 3.25 lbs • Minimum Recommended Crossover for 25 Watts/RMS: 1,000Hz @24dB/oct. Evaluation Setup: Mic at 24 ins, horn axis • Impulse Window=5ms • No Smoothing • Sweep Signal with Bass Removed. |

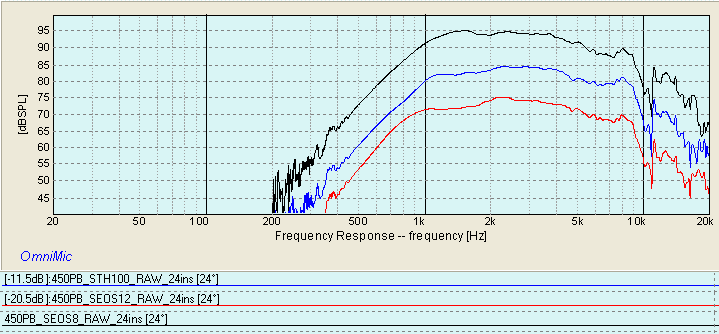

Radian 450PB with FaitalPro STH100 • DiySG SEOS-8 • SEOS-12
|
April 14, 2018PRO DRIVERS
