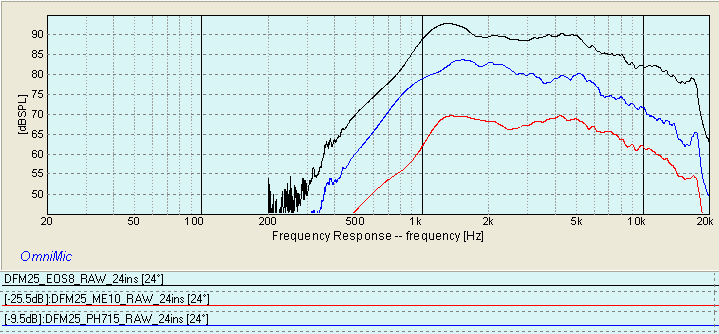

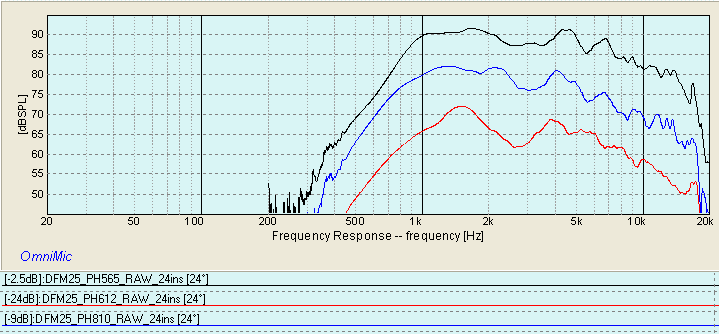

| Peerless DFM-2535R00-08 Specifications: • 1″ exit Titanium Diaphragm • Mounting type: 2/4 Bolt M6 • Frequency Response: 1,500Hz-15,000Hz • Sensitivity: 107dB @ 2.83V/1M • Impedance: 8Ω • Weight: 2.25 lbs • Minimum Recommended Crossover: 1,500Hz @12dB/oct. Evaluation Setup: Mic at 24 ins, horn axis • Impulse Window=5ms • No Smoothing • Sweep Signal with Bass Removed. |

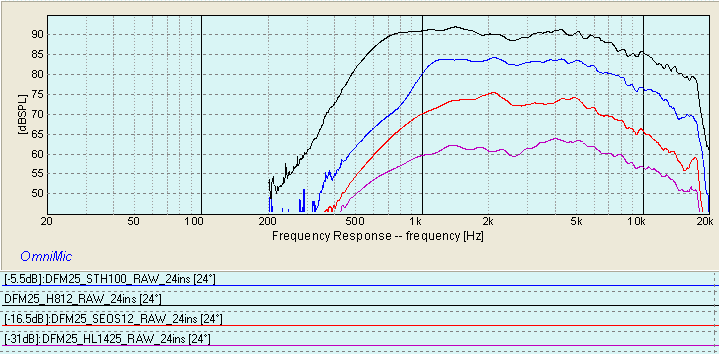

Peerless DFM-2535 with Dayton H812 • FaitalPro STH100 • DiySG SEOS-12 • Selenium HL14-25
|
April 12, 2018PRO DRIVERS
