SB Acoustics SB16PFC25-08 Paper Cone 6″ Woofer

SB16PFC25-08 RAW Frequency Response
Baffle Width = 9″ • 40 liters DCR Box
Mic at 36 ins • Woofer axis • Impulse Window = 5 msec • No Smoothing • Nearfield below 500Hz

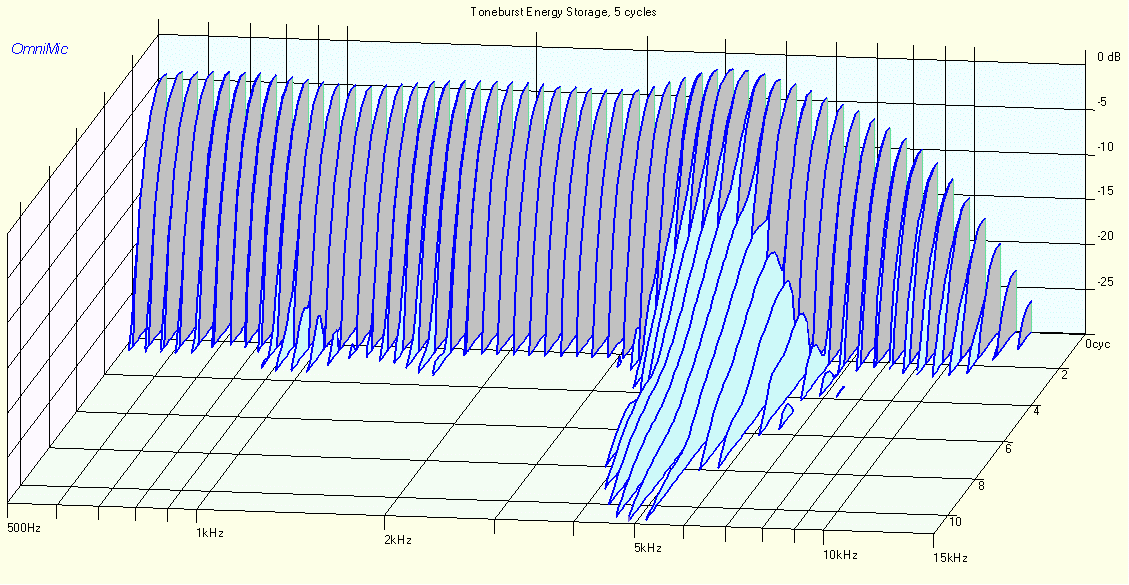

SB Acoustics SB16PFC25-08 RAW Toneburst Energy Storage

40 liters DCR Box

SB16PFC25-08 RAW Harmonic Distortion

Red plot = 2nd harmonic • Violet plot = 3rd harmonic • 40 liters DCR Box

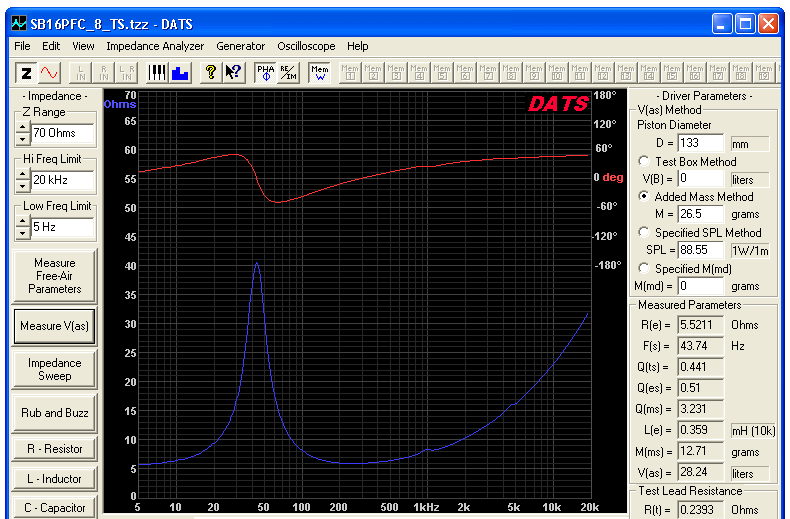

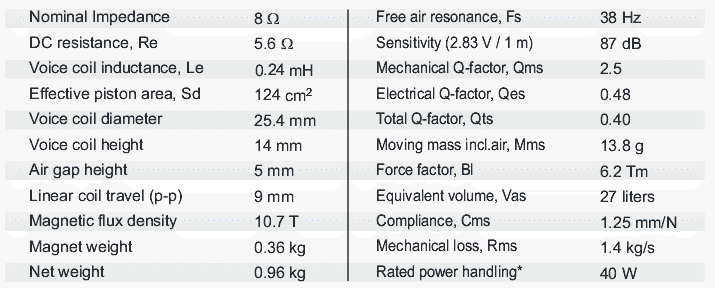

Thiele & Small Parameters

Thiele & Small Parameters (before Break-in)

Ported Box=18 liters • Fb=43Hz (Manufacturer’s T/S)

Ported Box=18 liters • Fb=43Hz (DATS x0.9)

Ported Box=15 liters • Fb=45Hz (Manufacturer’s T/S)

Ported Box=15 liters • Fb=45Hz (DATS x0.9)
