Fountek FW168 Aluminum Cone 6.5″ Woofer

FOUNTEK FW168 MIDWOOFER

September 28, 2017HIFI DRIVERS, , , ,

Fountek FW168 Frequency ResponseFountel FW168 RAW FREQUENCY RESPONSEBaffle Width=8.5″. Ported Box=13 liters.
Mic at 36ins, woofer axis. Impulse Window=5msec. No Smoothing.

Fountek Thiele & Small Parameters

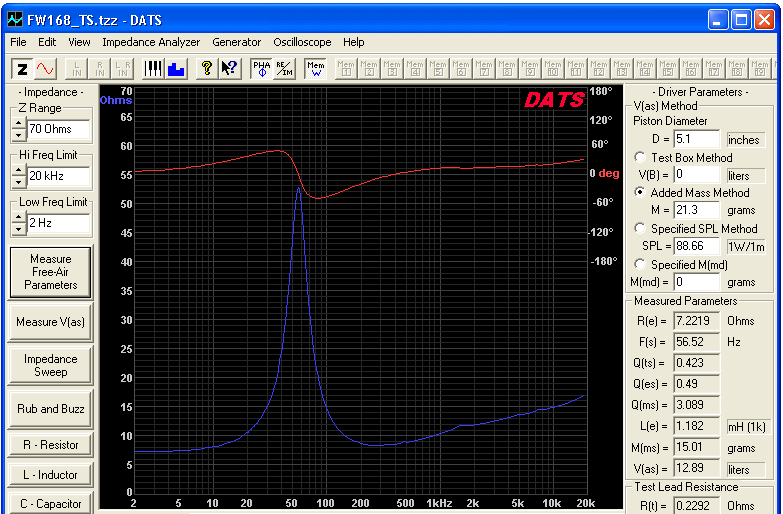

Measured Thiele & Small ParametersFountel FW168 THIELE SMALL

Ported Box=25 liters. F3=45HzFountel FW168 PORTED 25L

Ported Box=20 liters. F3=50HzFountel FW168 PORTED 20L

Ported Box=15 liters. F3=53HzFountel FW168 PORTED 15L

Sealed Box=7 liters. F3=95Hz, Q=0.71Fountel FW168 SEALED 7L

Bandpass Box=19 liters. F3=45Hz-135HzFountel FW168 BANDPASS 19L

Updated on June 28, 2018
