Dayton H10RW 10″ Round Waveguide (75 deg conical – 1-3/8″ x 18 TPI)

Specifications: • Nominal dispersion: 75° Conical • Minimum frequency: 1,600 Hz • Throat diameter: 1″ • Dimensions: 10″ Round x 5.0″D • Mounting type: Standard Screw 1-3/8″ – 18TPI • Construction: ABS

On axis Frequency Response

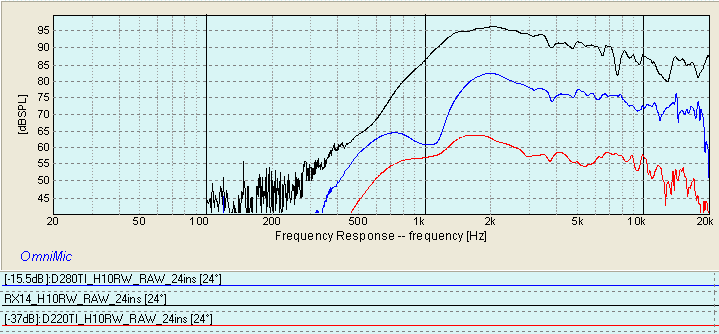

Black=Peavey RX14 | Blue=PRV D280Ti | Red=Selenium D220Ti

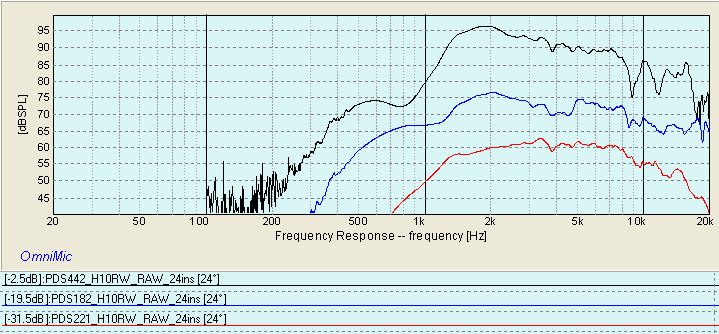

Black=Pyle PDS442 | Blue=Pyle PDS182 | Red=Pyle PDS221

Black=Pyle PDS382

Selenium ADM25-25 adapter was used for the following compression drivers

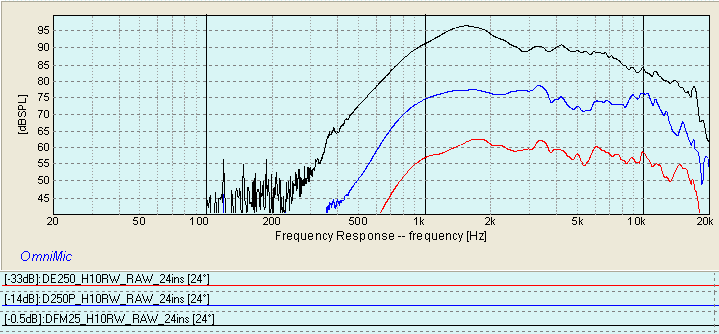

Black=Peerless DFM2535R00-08 | Blue=Dayton D250P | Red=B&C DE250

Black=Radian 450PB | Blue=Radian 465PB | Red=Pyle PDB512

Note: All plots are staggered for easier reference. Mic at 24 inches, on axis. Impulse Window=5msec. No smoothing applied.
