Audax HM130C0 Carbon Fiber Cone 5-1/4″ Midwoofer

 HM130C0 RAW Frequency Response

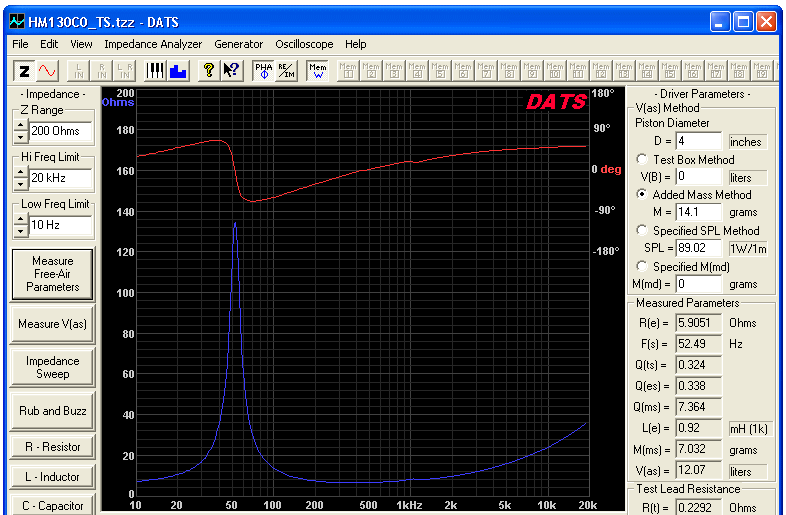

HM130C0 Thiele & Small Parameters

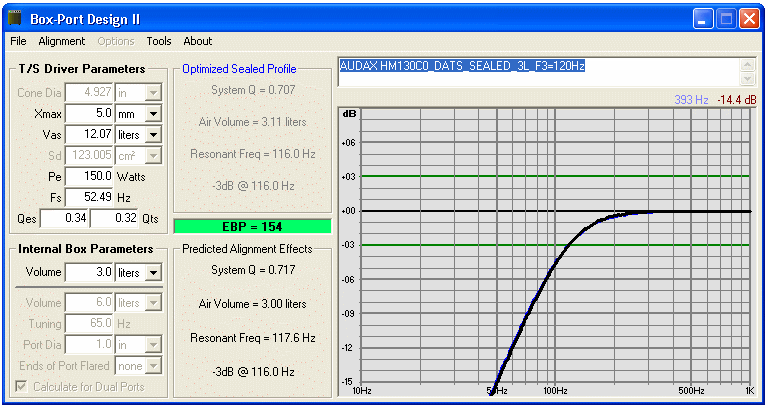

Sealed Box 3 liters. F3=116Hz. Q=0.72

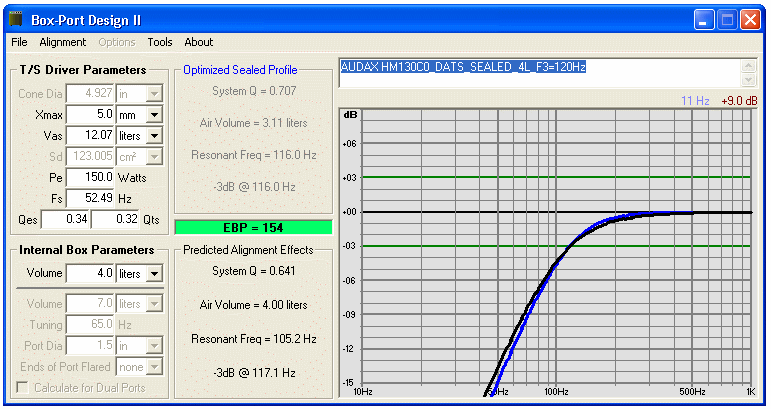

Sealed Box 4 liters. F3=117Hz. Q=0.64

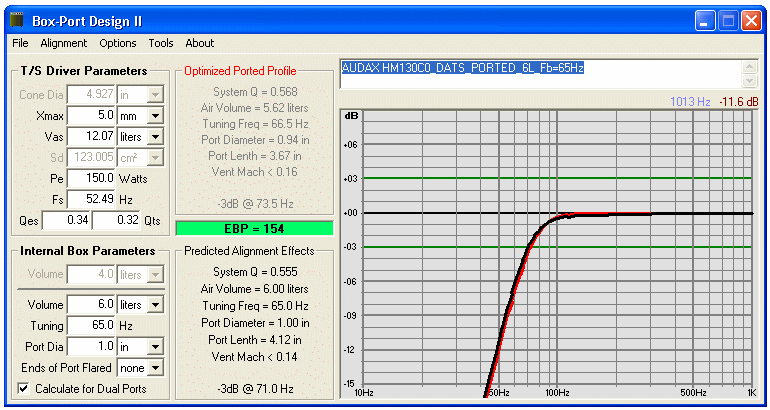

Ported Box 6 liters. F3=71Hz

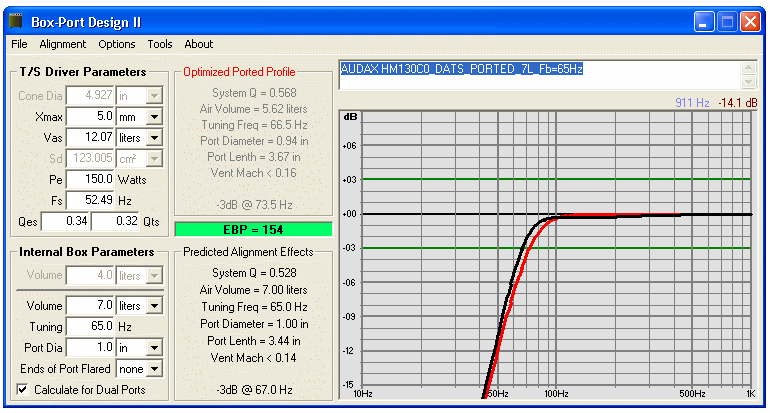

Ported Box 7 liters. F3=67Hz

Updated on Feb 14, 2019
